Precision OEM Manufacturing

China-based manufacturing capability for complex magnet-free motor architectures, covering lamination stamping, hairpin stators, wound rotors, insulation, impregnation, assembly, and repeat-production transfer.

Best Fit For:Sourcing directors and engineering teams needing reliable China-based manufacturing for rare-earth-free motor components beyond standard PMSM supply chains.

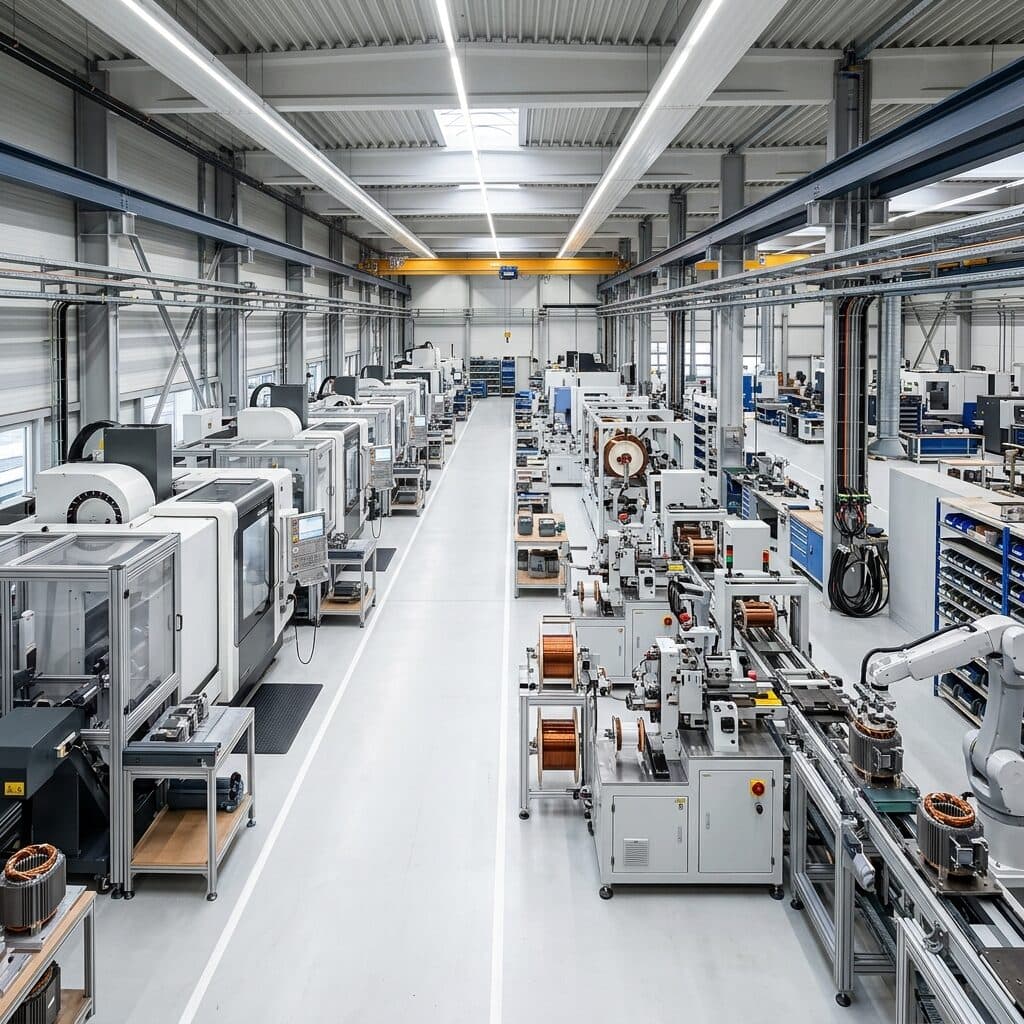

Factory machining and production capability for OEM motor component programs

Capability Highlights

Hairpin winding, rotor winding, and precision lamination stamping
VPI impregnation, insulation stack-up, balancing, and assembly support
Build-to-print and DFM review for customer-owned motor designs
Prototype, pilot, and controlled small-to-mid batch production paths
Material lot traceability for electrical steel, copper, insulation, and varnish

Typical Engagement Scope

Prototype samples and engineering validation builds
Small-to-mid batch production for EV and industrial OEM programs
Build-to-print stator, rotor, lamination, and winding component supply
Manufacturing transfer from R&D drawings to stable pilot process

Execution Focus

DFM for slot fill, bend radius, welding clearance, stack tolerance, and rotor retention
Material traceability tied to drawing revision, lot number, and inspection records
Process checkpoints for winding resistance, hipot, insulation, VPI, balance, and dimensional inspection
Tooling ownership, revision control, and prototype-to-production transfer governance
Packaging and export protection for precision cores, stators, rotors, and assemblies

Program Evaluation Matrix

Program Metric	Typical Range	Procurement Value
Quality Assurance	QMS, CTQ records, and EOL test scope by project	Gives procurement teams a clear baseline for controlled sample and production release.
Manufacturing Scope	Lamination, winding, VPI, balancing, assembly	Lets buyers consolidate critical magnet-free motor processes under one coordinated supplier path.
Production Stage	Prototype / pilot / small-to-mid batch	Clarifies whether the project needs engineering samples, validation builds, or repeat supply planning.

Program Control Flow

Process Step	Buyer Evidence	Acceptance Gate
Requirement and drawing baseline	Drawing package, STEP files, winding diagrams, material specs, CTQ list, and revision history.	Quotation references one controlled revision and separates open assumptions from frozen requirements.
DFM and manufacturing route	Slot-fill notes, bend/weld review, lamination tooling plan, VPI route, balance method, and process-risk list.	Buyer approves the manufacturing route before sample purchase order release.
Sample build and inspection records	Dimensional inspection, resistance, hipot, IR/surge, VPI batch, balance, photos, and outgoing report.	Samples meet agreed CTQ and electrical/mechanical acceptance limits.
Pilot and repeat-production control	Control plan, lot traceability, change log, packaging plan, delivery schedule, and escalation path.	Program can move from engineering samples to controlled pilot or repeat supply.

RFQ Preparation Checklist

2D drawings, STEP files, winding diagrams, lamination DXF, and revision history
Electrical steel grade, copper specification, insulation class, and varnish/VPI requirements
Target tolerances, CTQ dimensions, inspection plan, and sample acceptance criteria
Prototype quantity, pilot quantity, annual forecast, and desired production ramp timing
Required reports, certificates, packing standard, Incoterm, and destination country

Risk and Mitigation

Material substitution: Strict silicon steel grade and copper purity certifications.
Prototype process cannot scale: Define tooling path, inspection checkpoints, and pilot acceptance criteria before sample build.
Drawing revision confusion: Tie quotation, production records, inspection reports, and shipped lots to the same revision baseline.

Related Products

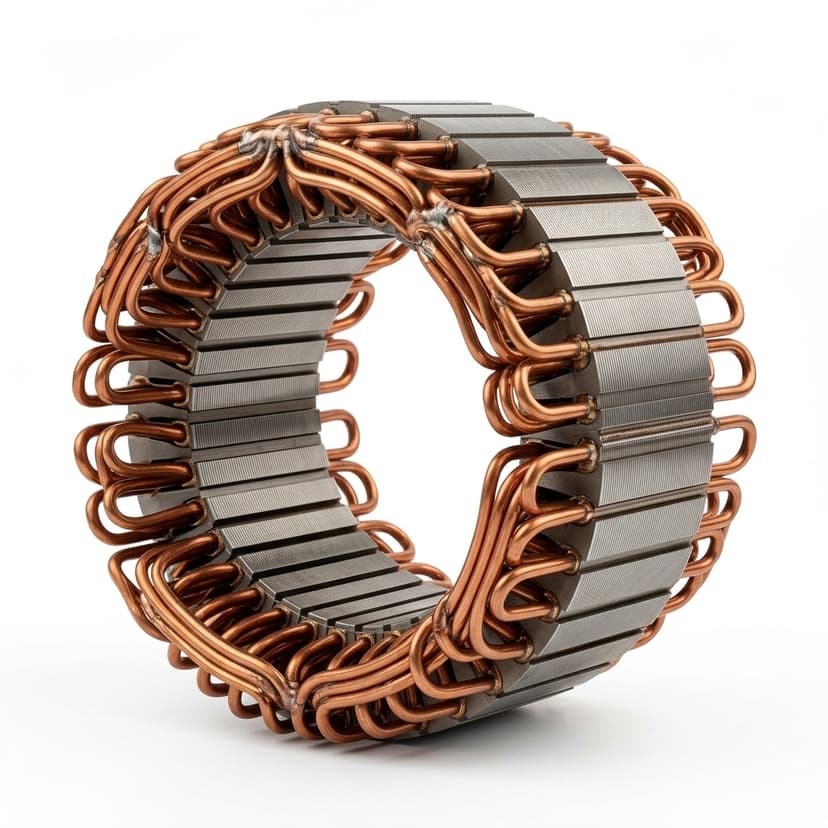

Automated hairpin winding output for EV stator manufacturing

Precision motor lamination stack used in OEM manufacturing programs

Buyer FAQ

Can you handle prototype runs?

Yes, we support from single prototype up to mass production.

Can you manufacture from customer-owned designs?

Yes. Send drawings, STEP files, material requirements, test criteria, and revision history for DFM review before quotation.

Which process records can be discussed before PO?

Typical records include dimensional inspection, winding resistance, hipot, insulation resistance, VPI batch, balance report, and outgoing inspection summaries.
