EV Traction & E-Axles

Rare-earth-free traction motor and e-axle component support for OEM teams evaluating EESM/WRSM, hairpin stators, wound rotors, and lamination stacks without NdFeB dependency.

Target Buyer:Best for Tier-1 and OEM automotive engineers comparing rare-earth-free traction architectures, validating custom stator/rotor components, or qualifying a China-based manufacturing partner.

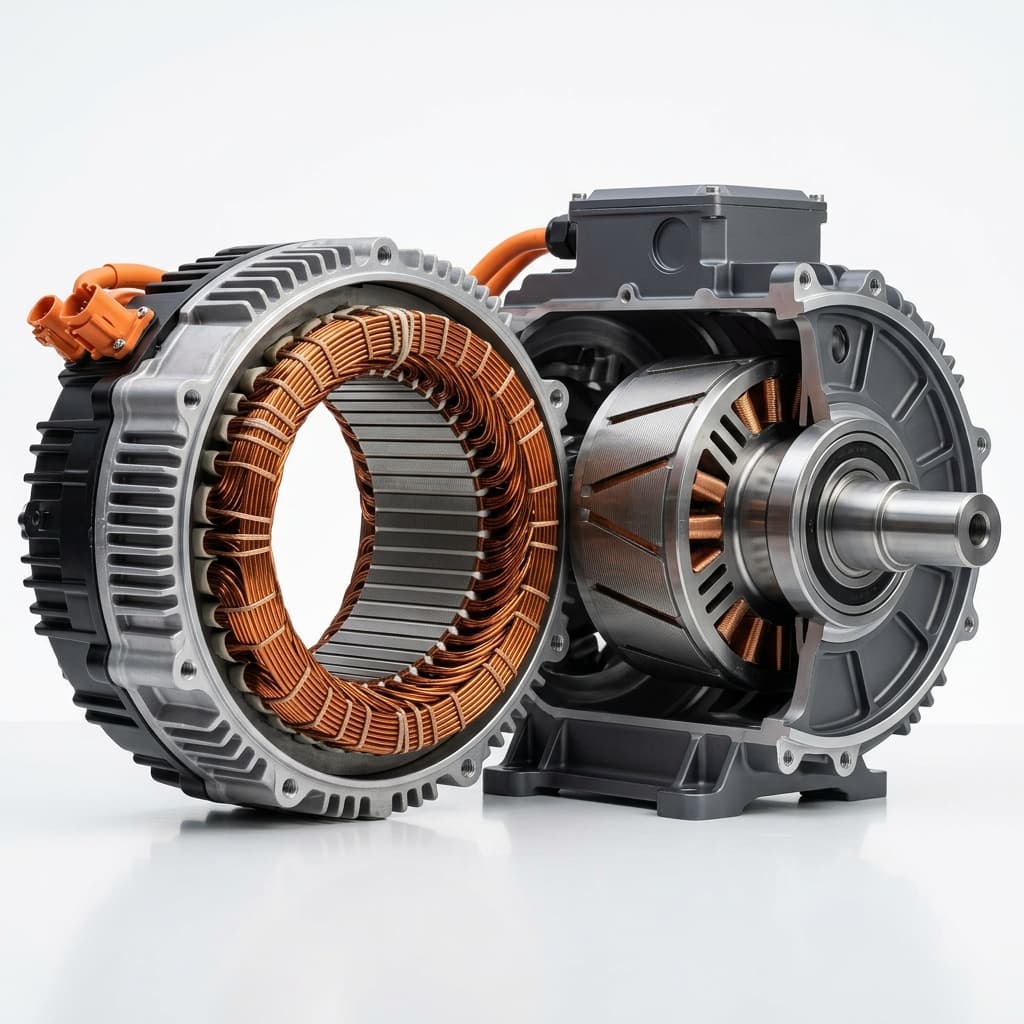

Rare-earth-free EV traction motor cross section with stator and rotor detail

Solution Highlights

NdFeB-free traction architecture screening for EESM and WRSM programs
High-speed field weakening and controllable rotor flux support
Hairpin stator, wound rotor, lamination stack, and excitation-interface scope review
Prototype, dyno, thermal, balance, and insulation evidence planning
Sample-to-pilot manufacturing route for automotive engineering teams
Supplier qualification support for teams reducing rare-earth supply-chain exposure

Common Use Cases

Passenger EV traction motor and e-axle validation programs
Commercial electric truck and heavy-duty mobility traction platforms
Rare-earth-free drivetrain R&D replacing or benchmarking IPM motors
Hairpin stator and EESM rotor component sample builds
Advanced mobility and aerospace-adjacent electric propulsion prototypes

Implementation Focus

Torque-speed map, base speed, maximum speed, and field-weakening target
Hairpin stator integration, slot insulation, lead exit, and cooling path
Rotor field winding, excitation interface, retention, overspeed, and dynamic balancing
Voltage platform, inverter assumptions, resolver/encoder interface, and thermal limits
Sample evidence package: resistance, hipot, surge/IR, VPI, balance, dyno, and dimensional records

Application Evaluation Matrix

Evaluation Metric	Typical Range	Buyer Relevance
NdFeB Dependency	0%	Eliminates geopolitical pricing volatility.
Architecture Fit	EESM / WRSM / component-only review	Clarifies whether the buyer needs complete motor architecture support or build-to-print components.
Speed Window	Base speed, max speed, overspeed by project	Field weakening, rotor retention, balance, and inverter strategy are speed-dependent.
Thermal Boundary	Water / oil / hybrid cooling assumptions	Cooling path determines continuous torque, insulation class, and validation depth.
Validation Evidence	Dyno, thermal, balance, hipot, IR/surge, dimensional	Automotive teams need measurable sample evidence before design freeze or supplier release.

Application Qualification Flow

Process Step	Buyer Evidence	Acceptance Gate
Architecture and component-scope screen	Torque-speed map, packaging envelope, cooling assumptions, and component responsibility matrix.	Buyer and supplier agree whether the scope is stator, rotor, lamination, excitation interface, or full motor support.
DFM and sample validation plan	Winding, lamination, rotor retention, insulation, excitation, and dyno-test risk notes.	Critical sample tests and pass/fail limits are defined before PO.
Prototype build and evidence package	Resistance, hipot, IR/surge, VPI, dimensional, balance, and dyno/thermal records by sample.	Engineering can decide whether to iterate, approve pilot, or stop the architecture.
Pilot readiness and supply planning	Control plan, lot traceability, packaging plan, lead-time model, and change-control process.	Program is ready for pilot release with stable drawings, records, and delivery assumptions.

RFQ Preparation Checklist

Torque-speed map, peak/continuous power, base speed, and maximum speed
Voltage platform, inverter current limits, excitation window, and sensor interface
Cooling constraints: water jacket, oil spray, hybrid, or customer housing limit
Stator/rotor drawings, airgap, stack length, shaft, housing, and connector envelope
Validation plan: dyno points, thermal rise, overspeed, balance, insulation, and acceptance reports
Prototype quantity, pilot quantity, annual forecast, program stage, and delivery country

Risk and Mitigation

Manufacturing scalability: Confirm hairpin process route, weld inspection, insulation checks, and pilot acceptance records before production release.
Architecture chosen before duty cycle is clear: Require torque-speed map, duty cycle, cooling limits, and inverter assumptions before quoting WRSM/EESM scope.
Rotor reliability at high speed: Freeze retention method, balance grade, overspeed margin, and field lead strain relief before sample build.
Late validation evidence gap: Map each customer gate to a report: dyno, thermal, dimensional, resistance, hipot, IR/surge, VPI, balance, and material traceability.

Recommended Products

Hairpin stator winding for high-speed EV traction applications

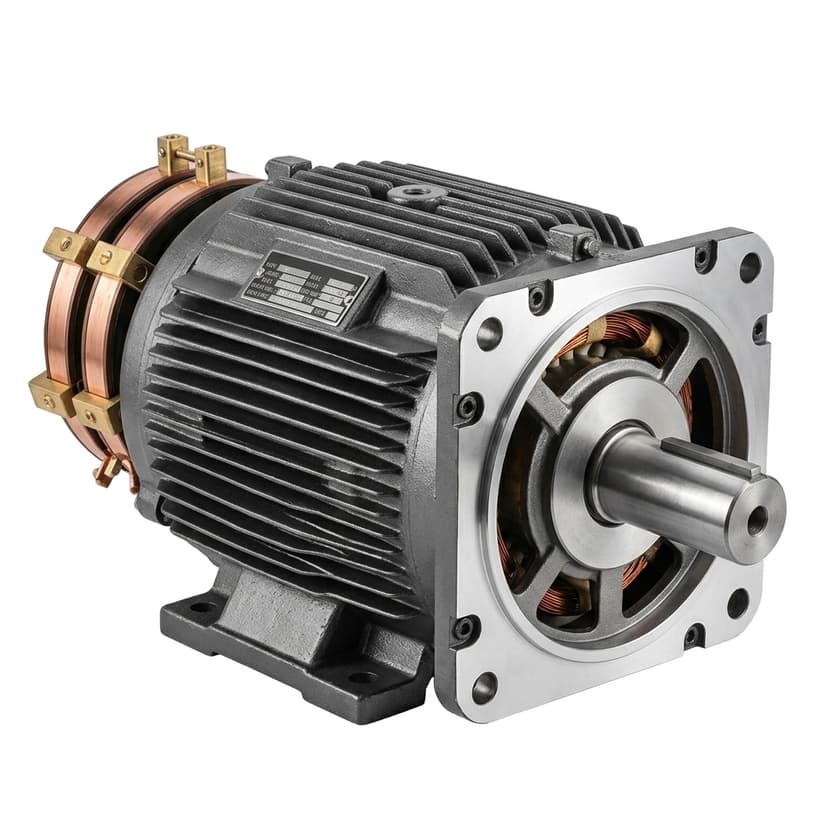

Wound rotor motor assembly for rare-earth-free traction architecture

Buyer FAQ

Do you build complete e-axles?

We specialize in the active electromagnetic components (stator/rotor).

When should an EV team choose EESM instead of IPM?

EESM is worth reviewing when rare-earth exposure, high-speed efficiency control, and rotor-flux adjustability outweigh the added excitation-system complexity.

Can you support build-to-print traction components?

Yes. Send stator, rotor, lamination, shaft, excitation, or assembly drawings with test criteria and we can review component-only scope.

What is the minimum useful validation plan?

At minimum, define torque-speed/dyno points, thermal limits, insulation tests, balance/overspeed requirements, dimensional inspection, and sample acceptance format.
