EESM Rotor Assemblies

Name: EESM Rotor Assemblies
Brand: Magnet-Free Motor
Availability: PreOrder

Copper-wound rotor, field winding, excitation interface, VPI insulation, and dynamic balancing support for externally excited synchronous motors.

Target Buyer:Best for engineering teams reducing NdFeB dependency while keeping control over rotor flux and high-speed efficiency.

Engineering Assets

Request reference specifications and STEP models without a registration gate. We confirm the correct package after a quick project-fit check.

Request Datasheet Request STEP Model

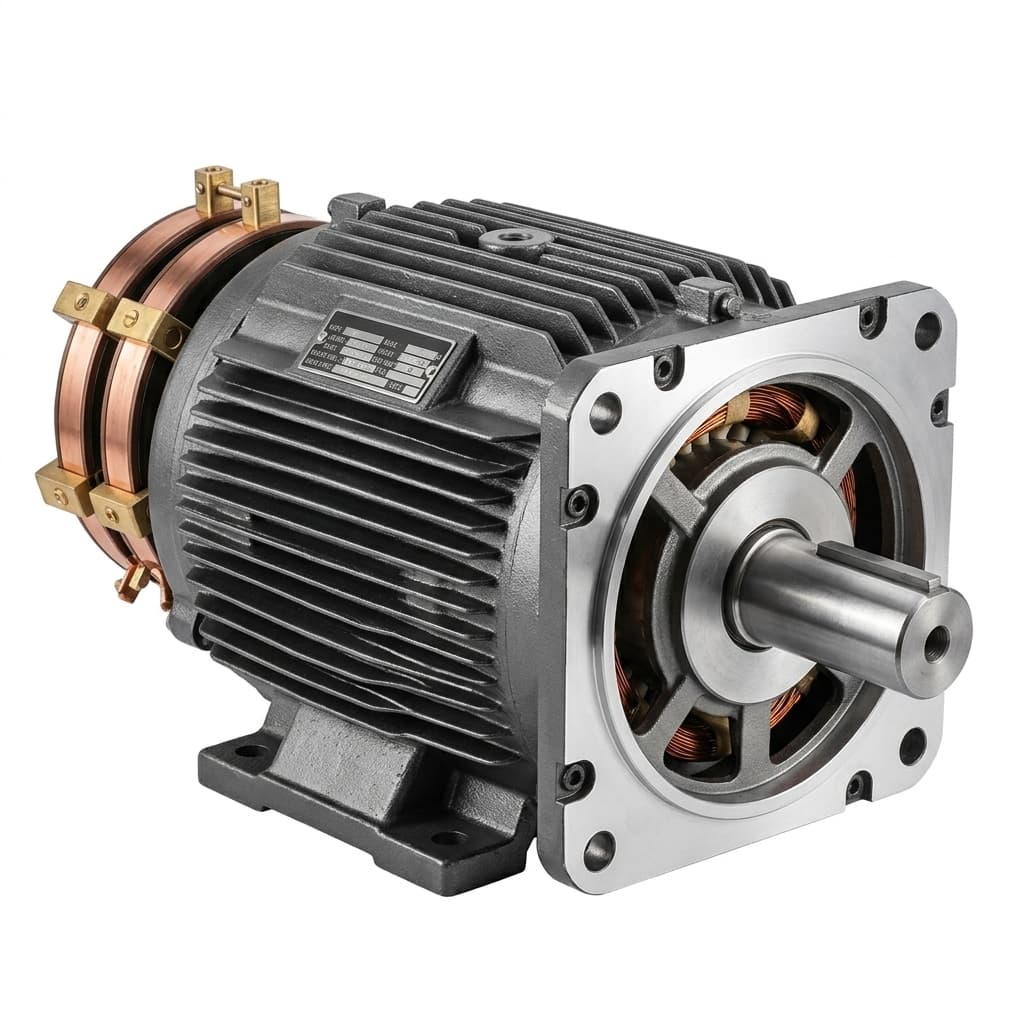

Wound rotor assembly with excitation interface for EESM manufacturing

Capability Highlights

Wound rotor build-to-print manufacturing for EESM and WRSM programs
Slot insulation, coil insertion, retention, and lead routing review
Class F/H insulation, varnish/VPI impregnation, and curing control
Slip ring, brush, or brushless excitation interface support
High-speed dynamic balancing, overspeed, and runout evidence planning
Material traceability for copper, electrical steel, insulation, and shaft lots

Typical Applications

EESM traction motors for rare-earth-free EV programs
Wound rotor synchronous motors with controllable field current
Field winding samples for excitation and thermal validation
Prototype rotor validation before full motor integration
Slip-ring, brush, or brushless excitation interface trials

Engineering Focus

Rotor copper winding retention under centrifugal load
Excitation current, thermal path, and insulation aging control
Balancing grade, overspeed margin, and shaft interface tolerance
Traceability for copper, electrical steel, insulation, and VPI batches
Field lead strain relief, terminal routing, and short-circuit protection assumptions
Rotor resistance, hipot, insulation resistance, and surge evidence tied to revision control

Key Evaluation Matrix

Metric	Typical Range	Why It Matters
Validation Evidence	Resistance, hipot, insulation, VPI, balance	Rotor reliability is the gating issue for EESM adoption in traction and high-speed duty.
Excitation Window	Field current and voltage by motor design	Defines copper size, thermal rise, brush/slip-ring load, and inverter control assumptions.
Speed and Overspeed	Application-specific max rpm and margin	Rotor winding retention, balance grade, and shaft interface must survive the mechanical load case.
Insulation System	Class F / H with varnish or VPI route	Field winding failure risk is controlled by insulation stack-up, impregnation, and thermal path.
Interface Scope	Rotor only / slip ring / brushless coupler support	Separates component manufacturing from full excitation-system responsibility before quotation.

Production and Validation Flow

Process Step	Buyer Evidence	Acceptance Gate
Rotor DFM and excitation review	Drawing gap list, slot-fill review, field-current assumptions, lead routing, and excitation interface notes.	Winding route, retention method, insulation class, and excitation package scope are agreed.
Winding, insulation, and impregnation	Resistance record, coil insertion checks, insulation photos, varnish/VPI batch, and curing parameters.	Electrical checks pass before rotor is released to mechanical finishing.
Mechanical finishing and balancing	Runout, shaft-interface inspection, balance correction, and optional overspeed evidence.	Rotor meets agreed balance grade, runout limit, and overspeed or speed-margin target.
Outgoing sample evidence package	Material traceability, resistance, hipot, IR/surge, dimensional, balance, and photo records.	Buyer engineering and supplier-quality teams can release the sample for motor integration.

RFQ Checklist

Rotor drawing, shaft interface, operating speed, and overspeed target
Excitation current/voltage window and preferred feed method
Insulation class, VPI requirement, and thermal model assumptions
Balancing grade, test report format, and sample quantity
Slot geometry, winding diagram, conductor specification, and retention method
Resolver/encoder, slip-ring, brush, or brushless coupler package constraints
Required resistance, hipot, IR, surge, runout, overspeed, and balance records

Risk Controls

Rotor winding movement at speed: Lock retention method, VPI parameters, and overspeed/balance acceptance criteria before tooling.
Excitation interface mismatch: Confirm current, voltage, duty cycle, brush/slip-ring or brushless coupler envelope, and service expectations before sample build.
Thermal aging of field insulation: Tie insulation class, VPI route, thermal model, resistance drift, and dyno points to the validation plan.
Evidence rejected after delivery: Agree report fields, units, sample size, acceptance limits, and language before production starts.

Product Gallery

Wound rotor motor sample used for excitation and balancing validation

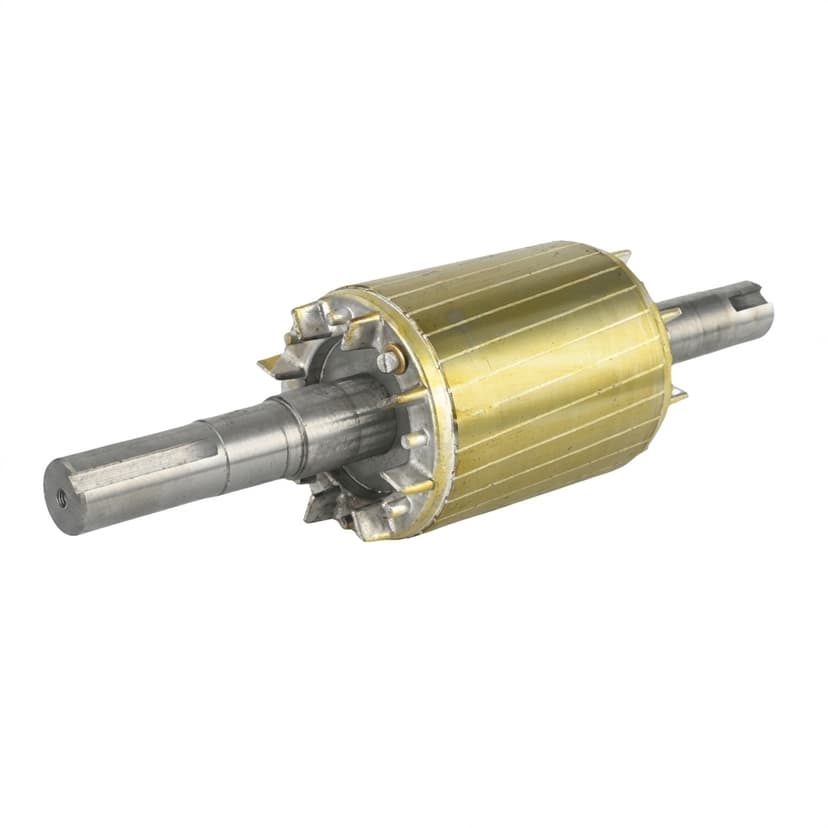

Rotor shaft and winding assembly for custom EESM rotor programs

Buyer FAQ

Do you support both slip ring and brushless excitation?

We support manufacturing review for slip ring, brush, and brushless excitation interfaces when drawings and electrical windows are provided.

Can you supply only a wound rotor assembly?

Yes. Many programs start with rotor-only samples for field winding, excitation, balance, and thermal validation before complete motor sourcing.

What speed data is needed for quotation?

Send rated speed, maximum speed, overspeed target, duty cycle, rotor OD, shaft interface, balance grade, and any customer-specific mechanical test requirement.

Which evidence matters most for EESM rotor samples?

Prioritize winding resistance, hipot, insulation resistance or surge, VPI/varnish traceability, runout, balance, and material lot records.
