Quality & Validation Evidence

Buyer-facing quality controls for magnet-free motor programs, including incoming material checks, process inspection, electrical testing, balancing records, and outgoing evidence packages.

Best Fit For:Best for engineering managers and supplier-quality teams that need objective evidence before releasing rare-earth-free motor samples or approving a China-based supplier.

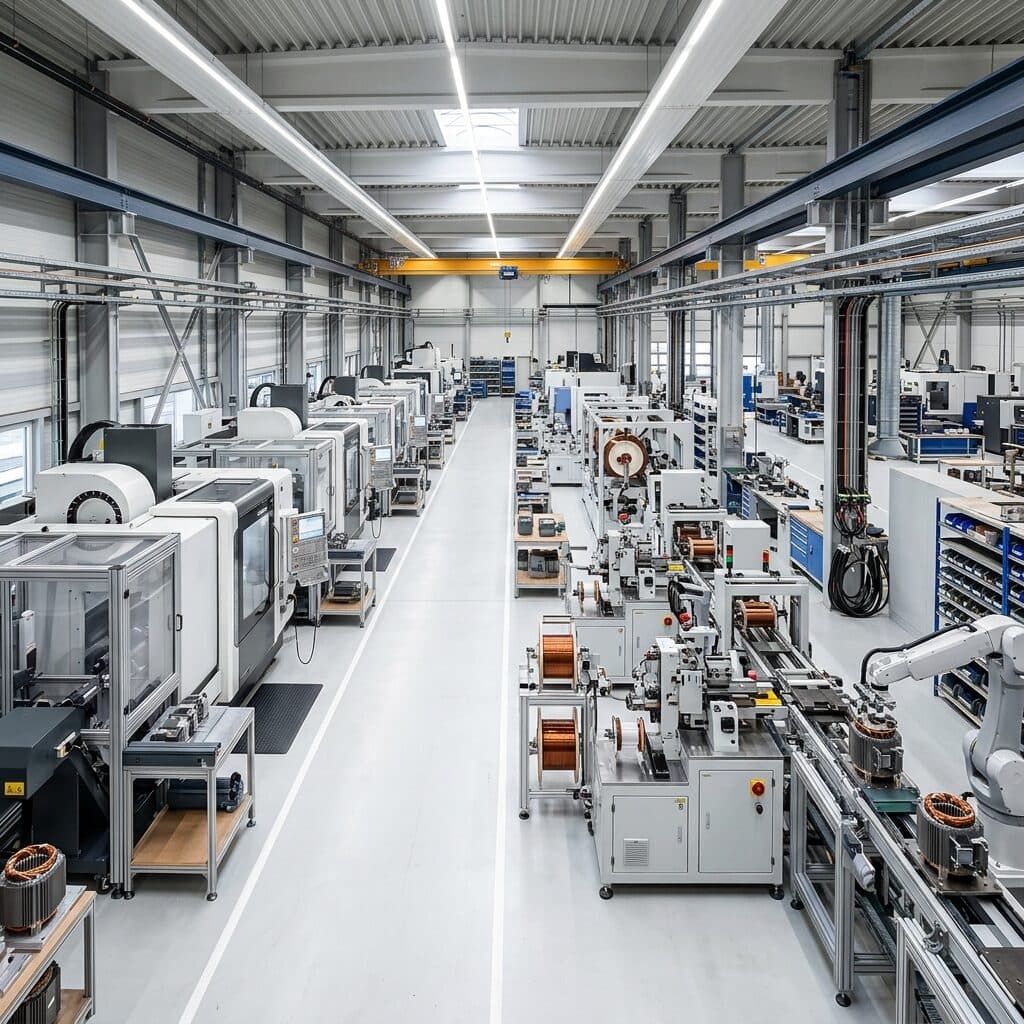

Factory quality and inspection capability for rare-earth-free motor validation programs

Capability Highlights

Incoming material verification for electrical steel, copper, insulation, and varnish
Dimensional inspection for lamination burr, stack height, runout, and concentricity
Electrical checks for resistance, surge, hipot, insulation resistance, and partial discharge planning
Dynamic balancing and overspeed evidence for wound rotor and high-speed assemblies
Outgoing report package aligned to sample approval and lot-release requirements

Typical Engagement Scope

EV traction rotor and stator sample approval
IE5 SynRM retrofit validation for industrial OEMs
SRM harsh-duty motor prototype verification
Supplier qualification and audit preparation for global buyers

Execution Focus

CTQ mapping from drawings to inspection checkpoints and test records
Agreement on test standards, report format, sample size, and acceptance limits before build
Traceable batch records for steel grade, copper lot, insulation materials, VPI cycle, and outgoing inspection
Failure-mode review for rotor winding movement, insulation breakdown, lamination burr, weld variation, and thermal rise
Separation of prototype evidence, PPAP-like package expectations, and production lot-release controls

Program Evaluation Matrix

Program Metric	Typical Range	Procurement Value
Electrical Evidence	Resistance, surge, hipot, IR, PD planning	Motor engineers need test records that connect directly to insulation and winding reliability.
Mechanical Evidence	Dimension, burr, runout, balance, overspeed	High-speed magnet-free architectures depend on repeatable mechanical control.
Traceability Level	Material lot to outgoing inspection record	Procurement teams can audit risk without relying on generic quality claims.

Program Control Flow

Process Step	Buyer Evidence	Acceptance Gate
CTQ and evidence mapping	Drawing CTQ list, electrical test list, mechanical inspection list, sample size, and acceptance limits.	Every buyer requirement maps to a measurable inspection or test record.
Incoming and in-process control	Material certificates, lot IDs, lamination burr checks, winding resistance, weld checks, and VPI batch records.	Material and process records are tied to sample or lot identity before final inspection.
Final validation and release	Hipot, IR/surge, dimensional report, balance/overspeed evidence, dyno or EOL record, and photo package.	Outgoing report package matches buyer QA format and sample-release requirements.
Corrective action and repeat control	Failure log, root-cause notes, containment, revised control plan, and affected lot traceability.	Buyer can approve rework, redesign, or pilot continuation with transparent evidence.

RFQ Preparation Checklist

Critical dimensions and CTQ features from your drawings
Electrical tests required: resistance, surge, hipot, insulation resistance, PD, or dyno points
Mechanical tests required: balance grade, overspeed, runout, stack height, or burr limit
Report format, sample size, acceptance limits, and language requirements
Any customer-specific audit checklist or supplier-quality manual

Risk and Mitigation

Vague acceptance standards: Convert every critical drawing or performance requirement into a measurable inspection or test item.
Prototype evidence rejected by customer QA: Agree report format, sample size, and acceptance limits before sample production starts.
Untraceable material batches: Link material certificates, process records, and outgoing reports by lot and drawing revision.

Related Products

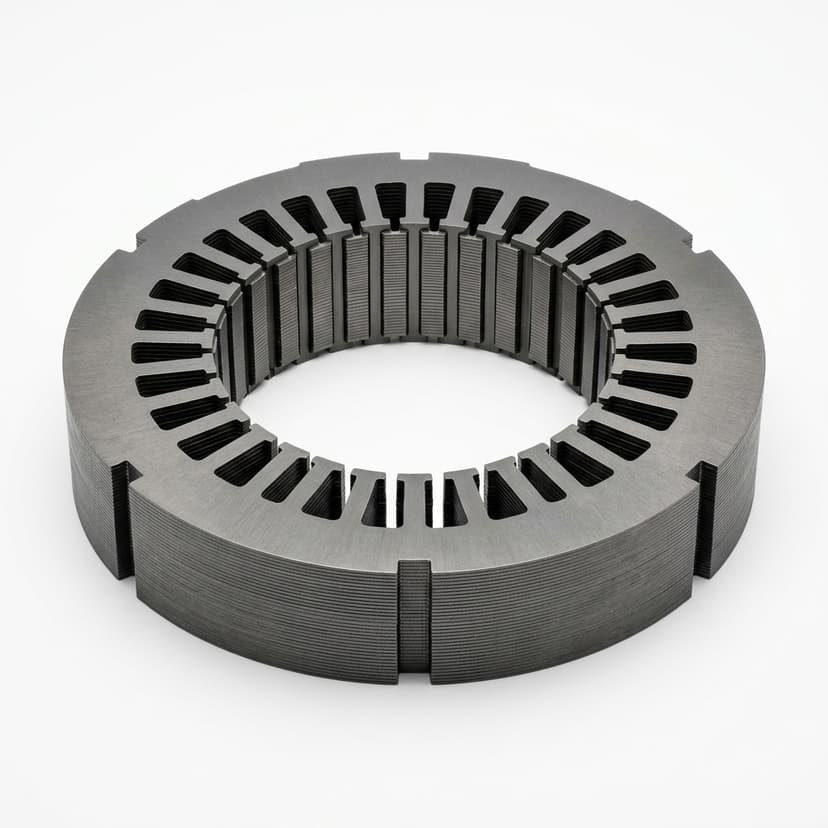

Dimensional inspection reference for electrical steel lamination stack validation

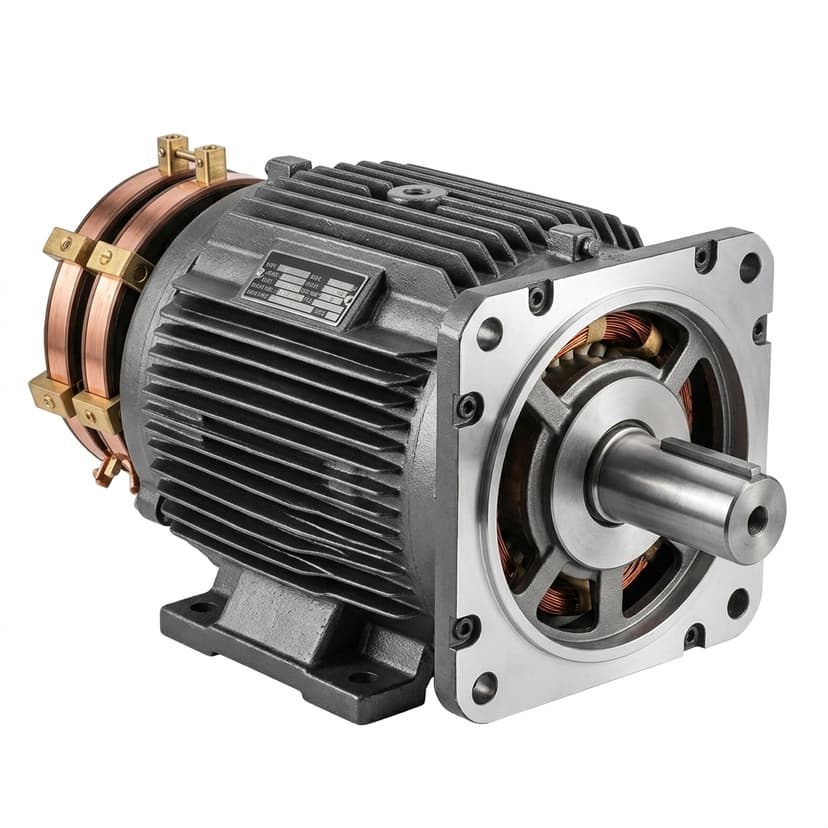

Wound rotor assembly requiring resistance, hipot, insulation, and balance validation

Buyer FAQ

Can you prepare an evidence package for supplier approval?

Yes. Share your supplier-quality checklist and required report format so the sample plan can include the right inspection and test records.

Do you provide certification for all motor designs?

Certification scope depends on the product and market. We can align test records and supporting documents, while formal certification needs to be scoped project by project.

Can quality records be customized to our APQP or PPAP process?

Yes. We can map records to your control plan and sample approval workflow when requirements are provided before build.
